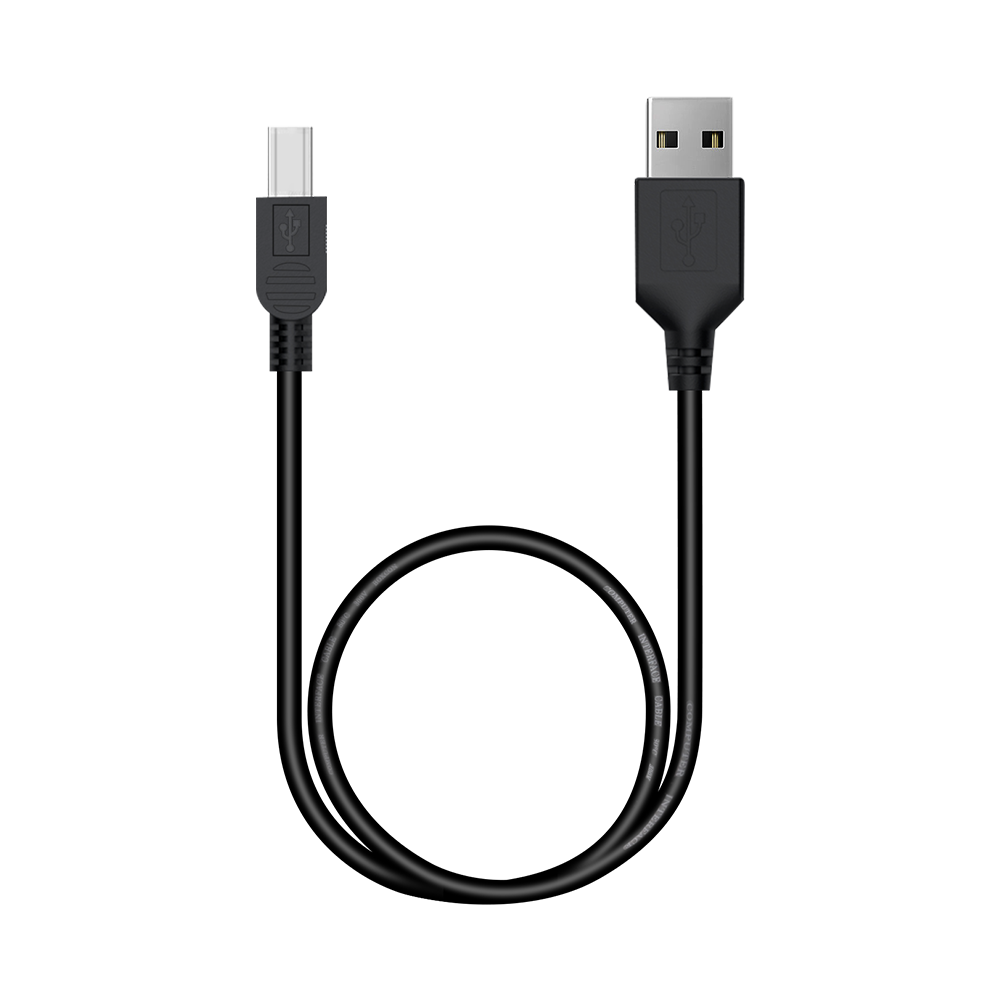

Accessories
Operations
Product Features
1.Protect original car parts

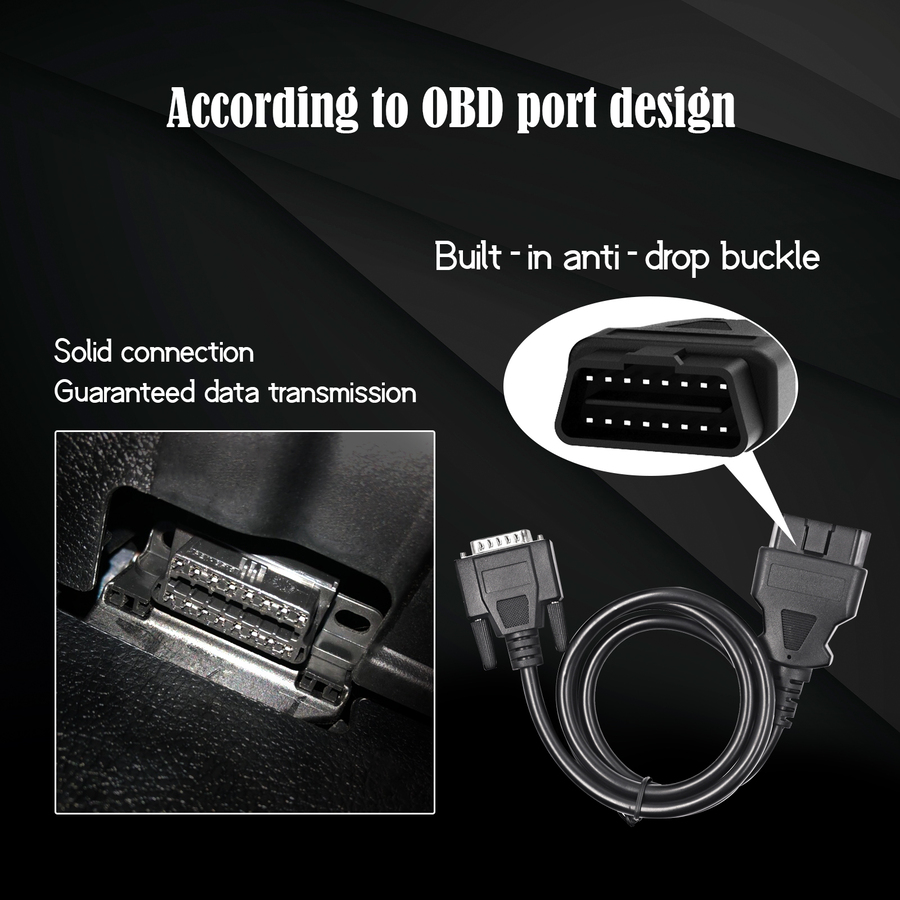

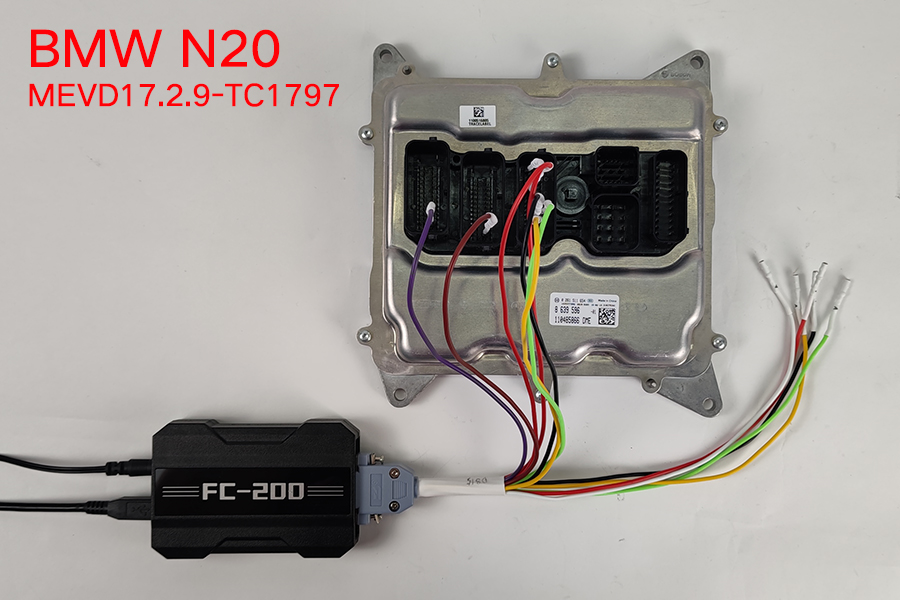

More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.
2.Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.
3.Module clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

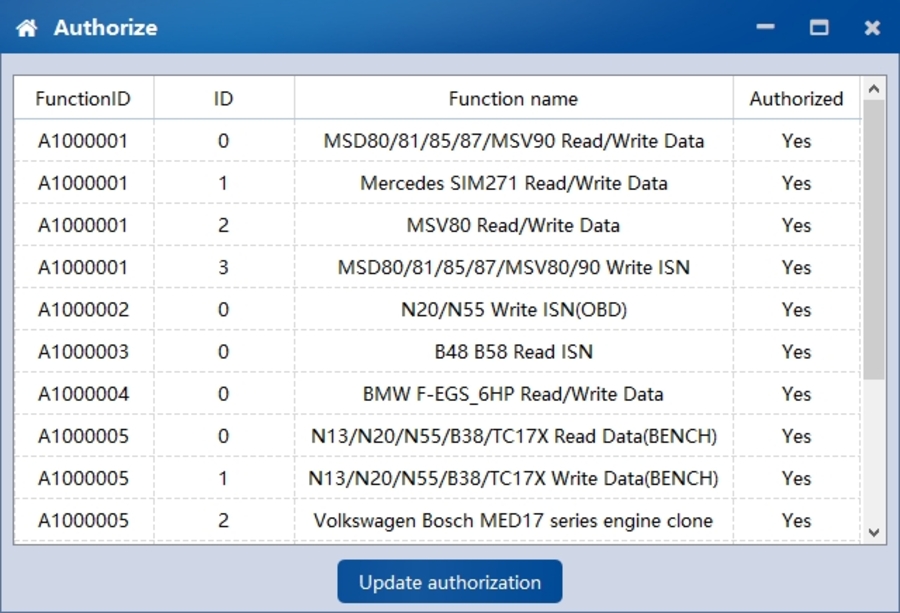

4.ISN read and write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.
5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

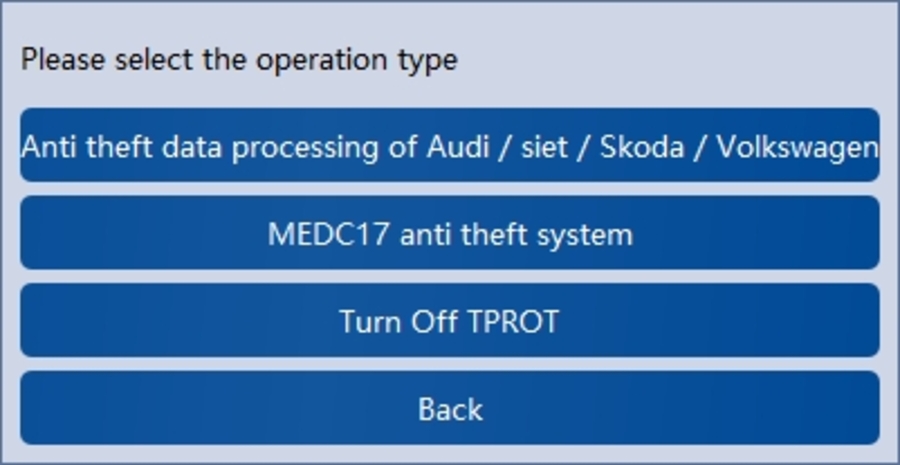

6.data processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
Software Features

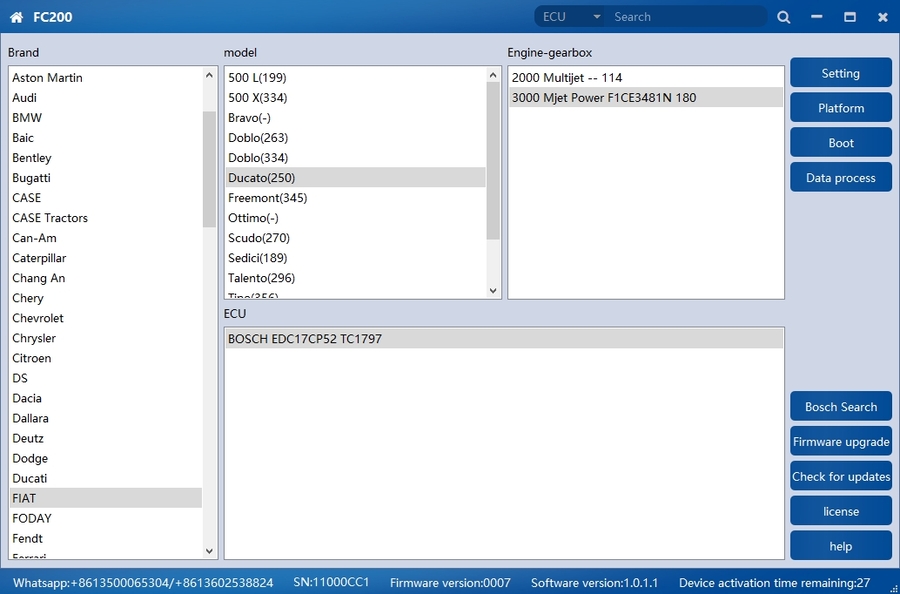

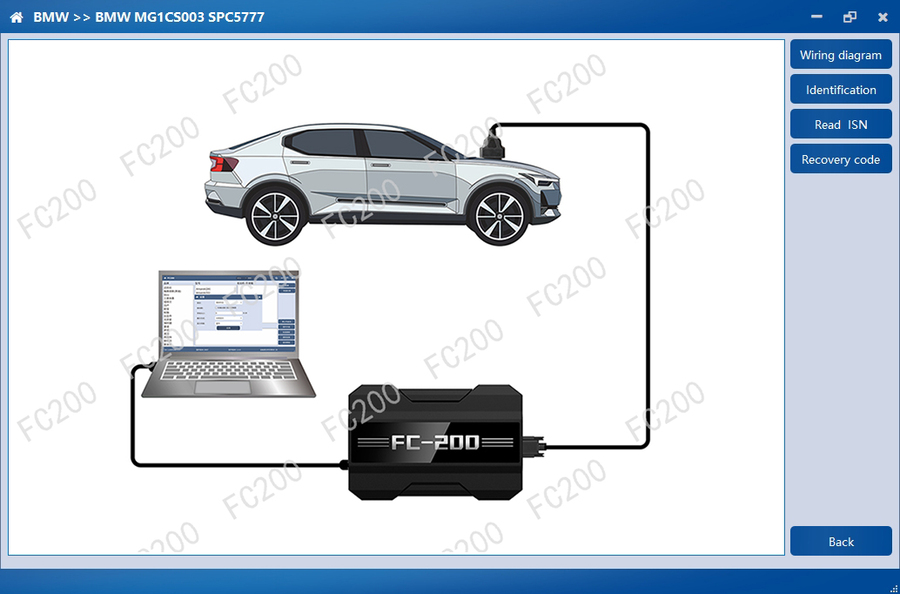

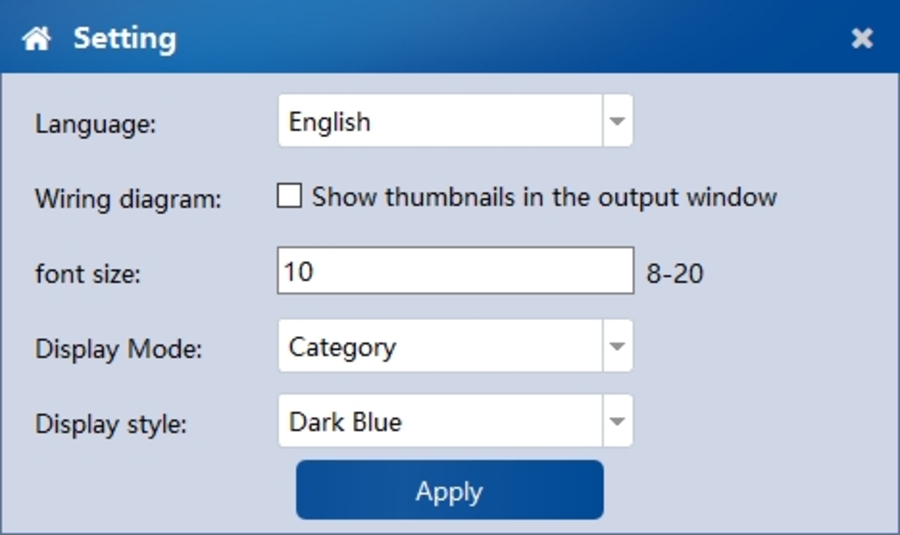

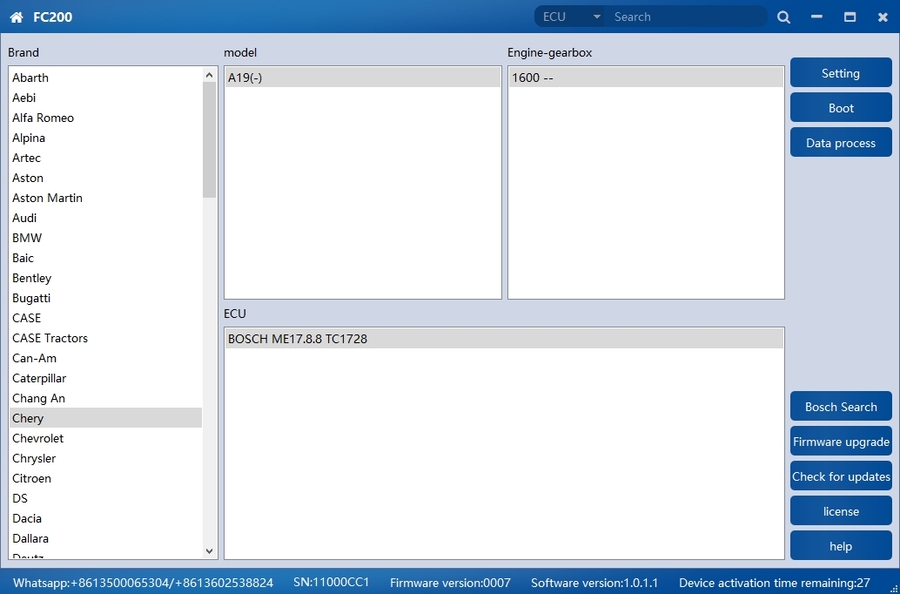

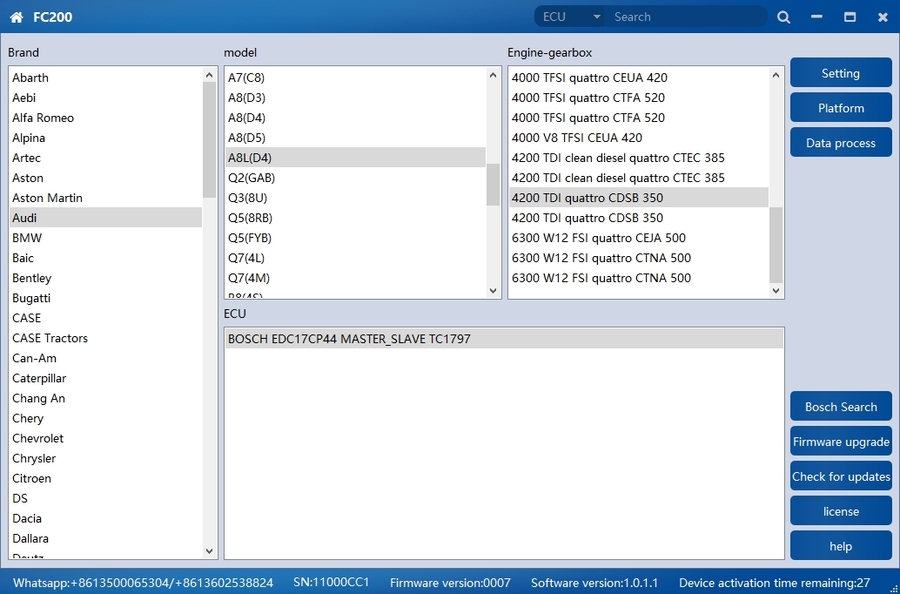

1.Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.

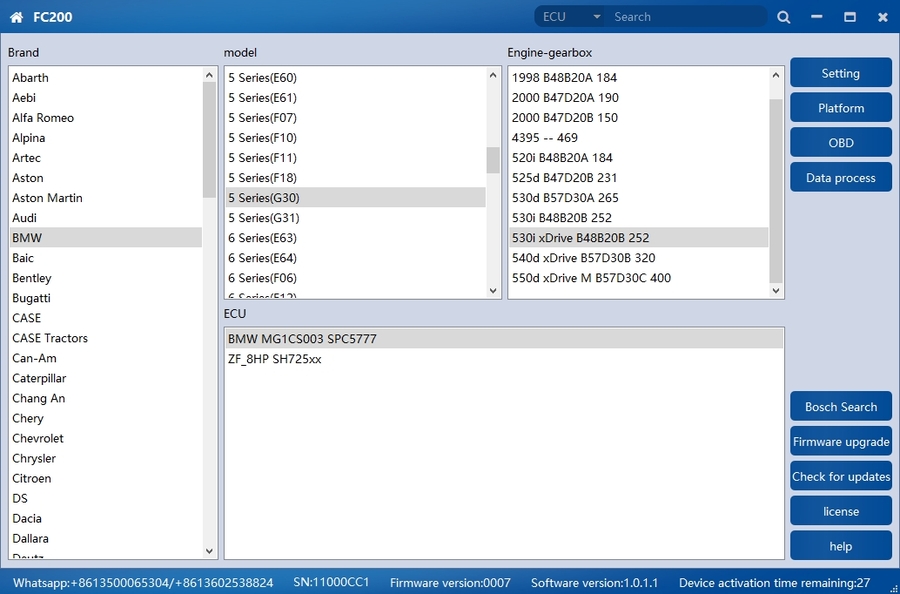

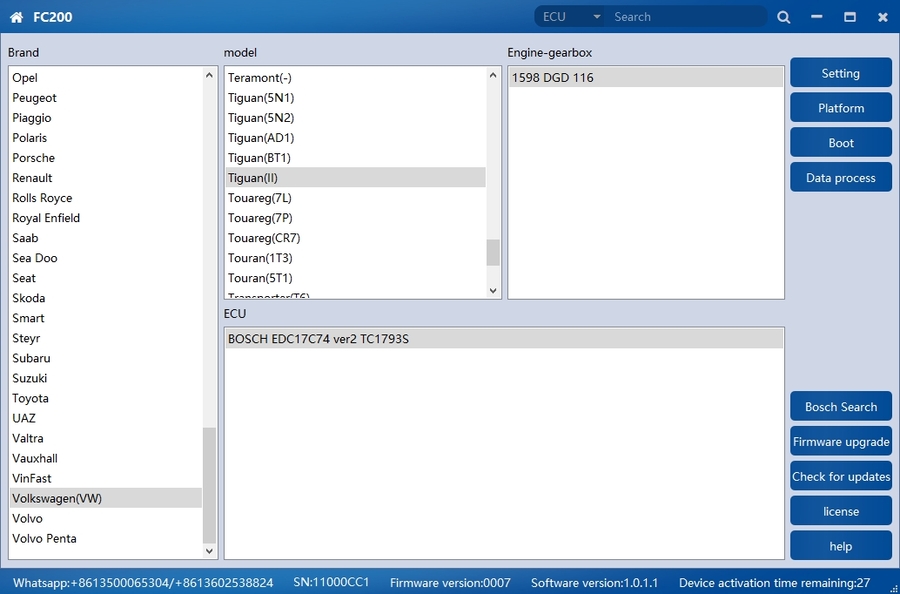

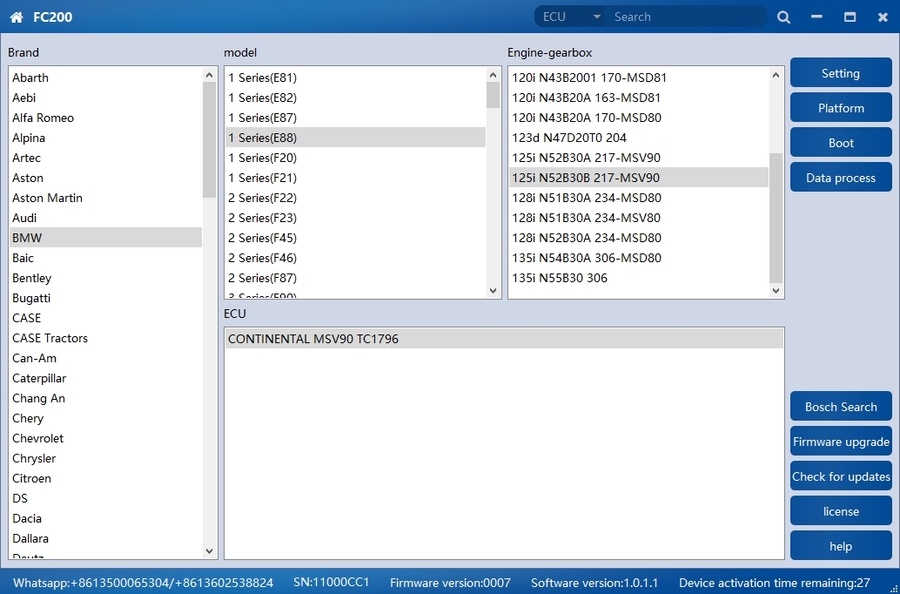

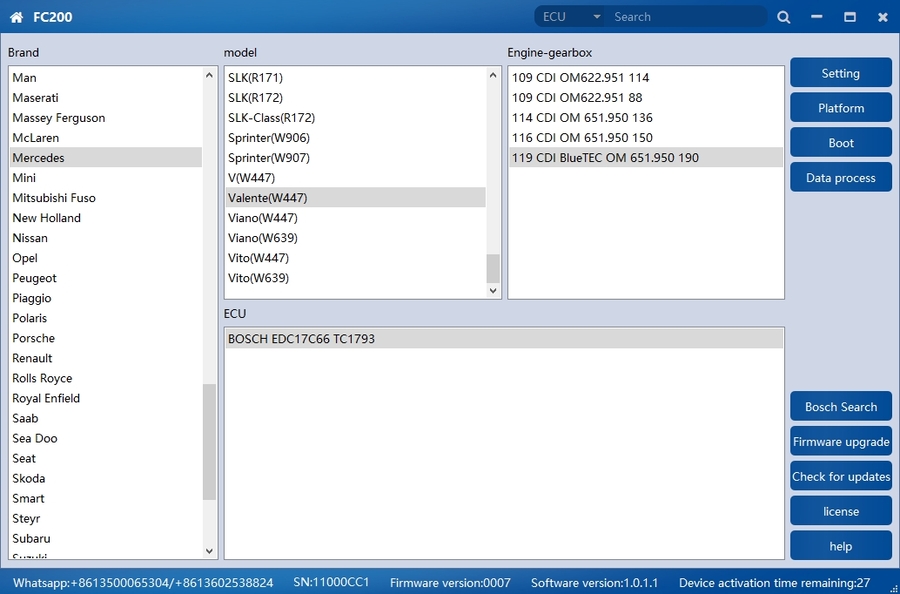

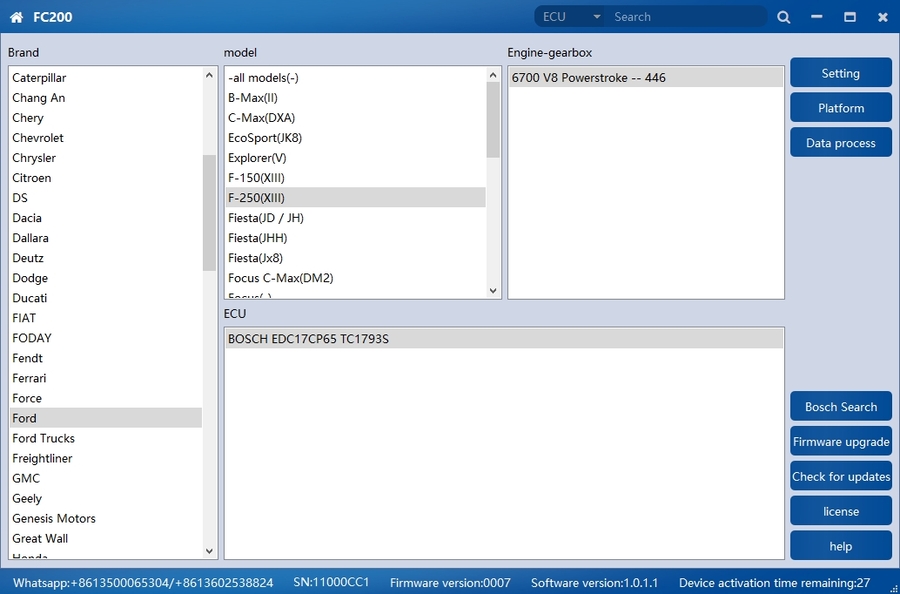

2.Built-in model search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.

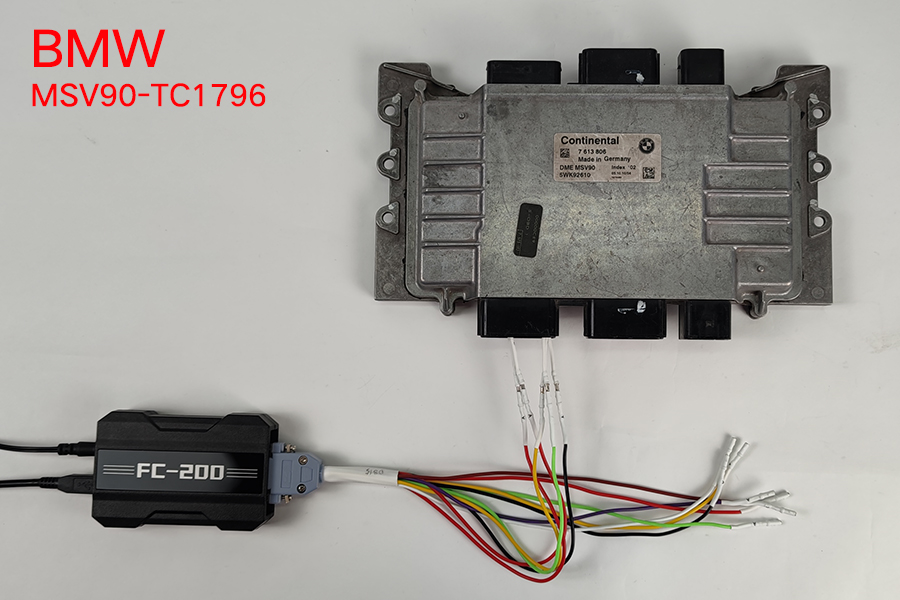

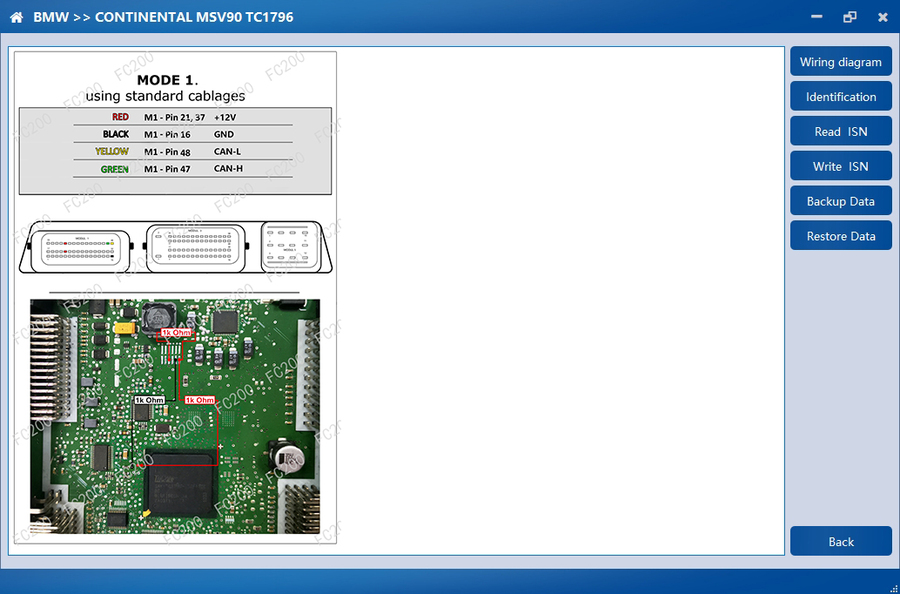

ECU search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
Bosch number search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525". Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

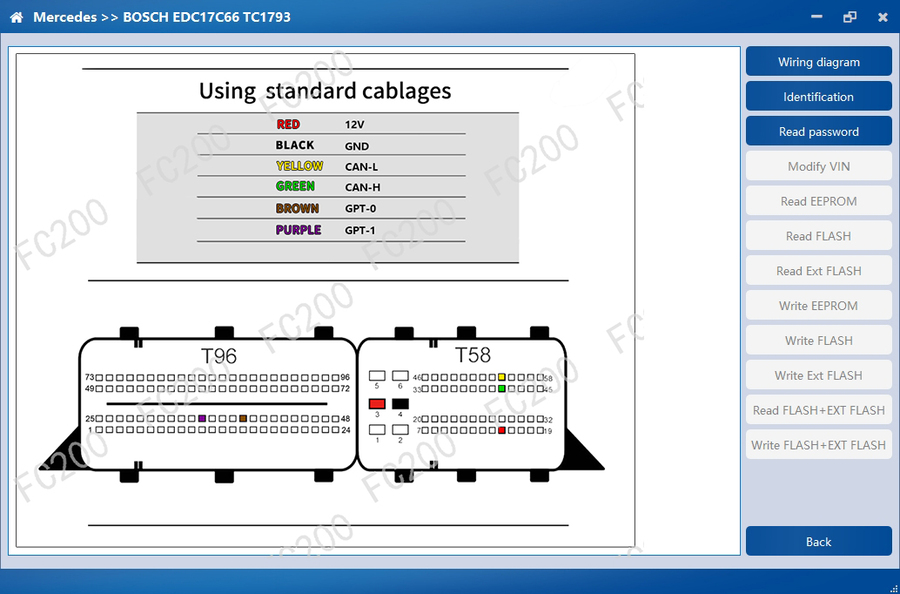

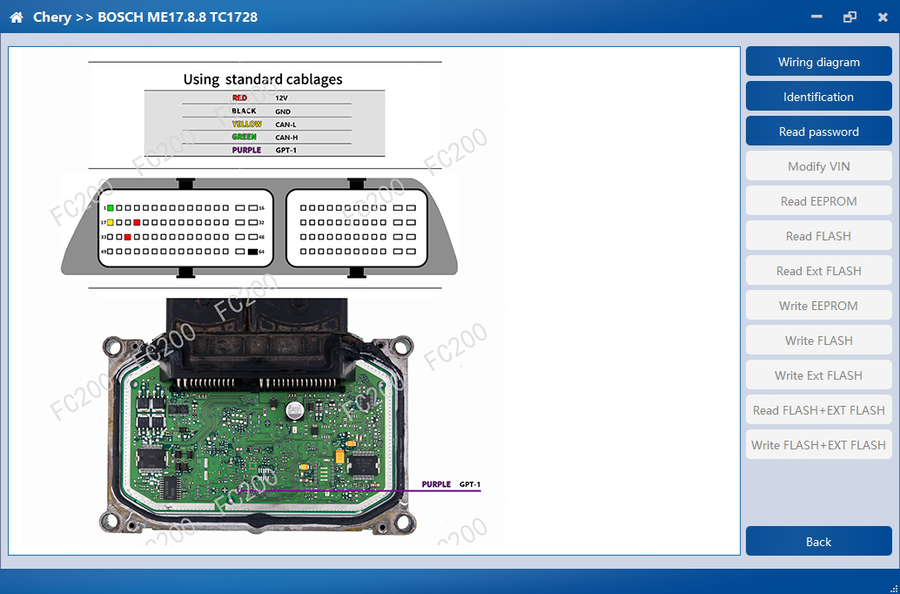

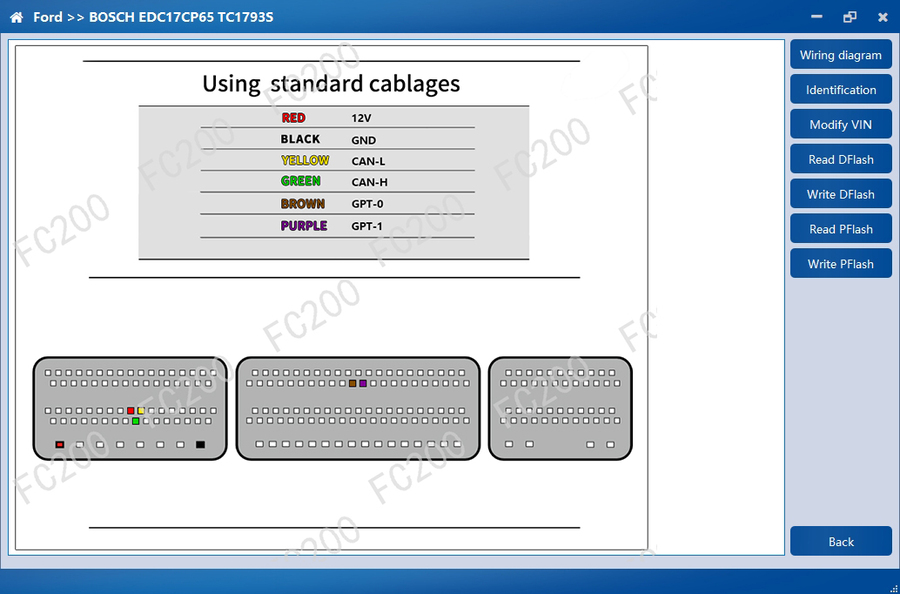

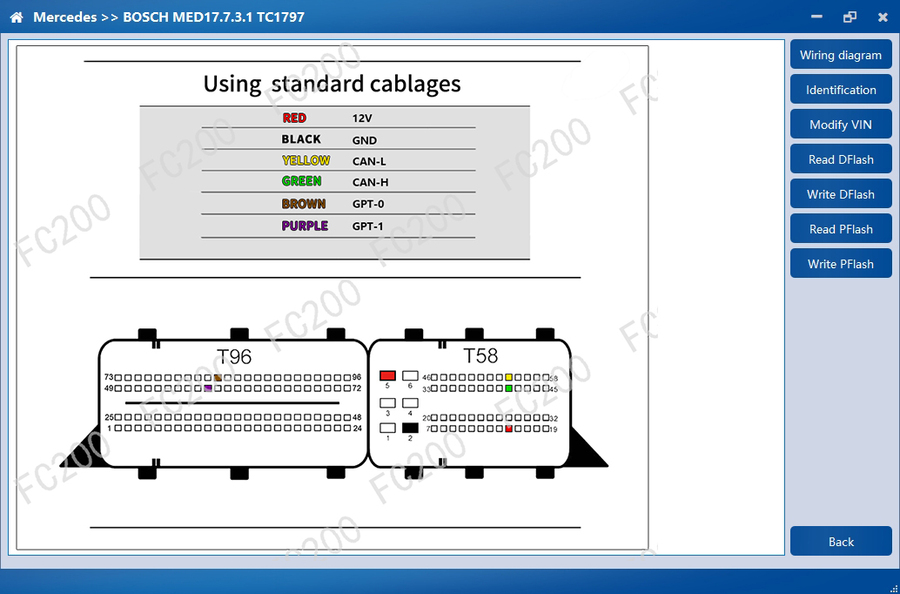

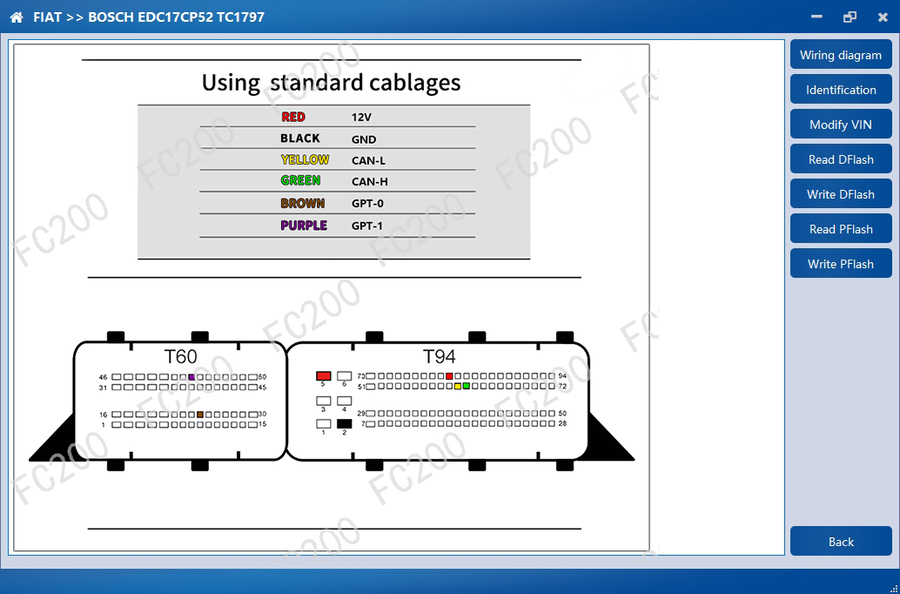

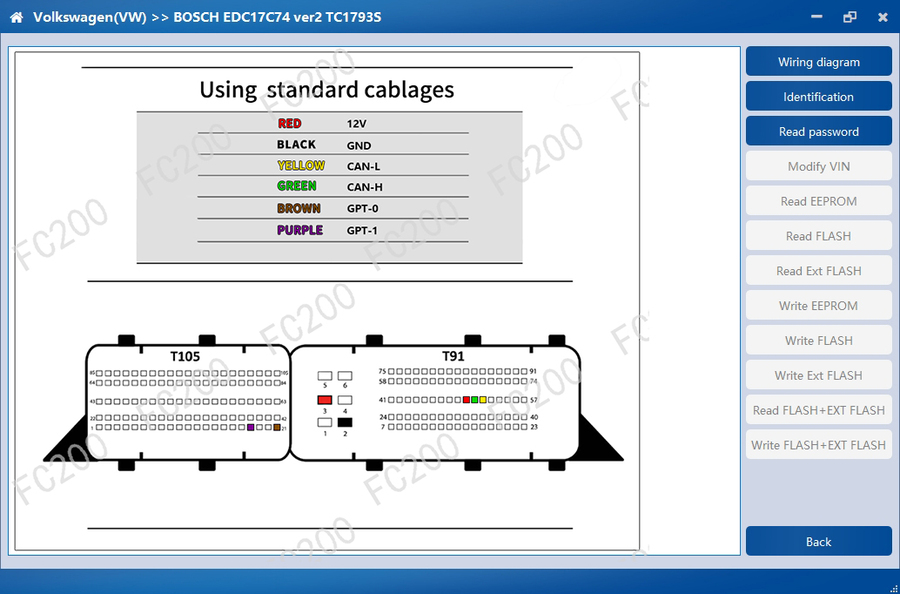

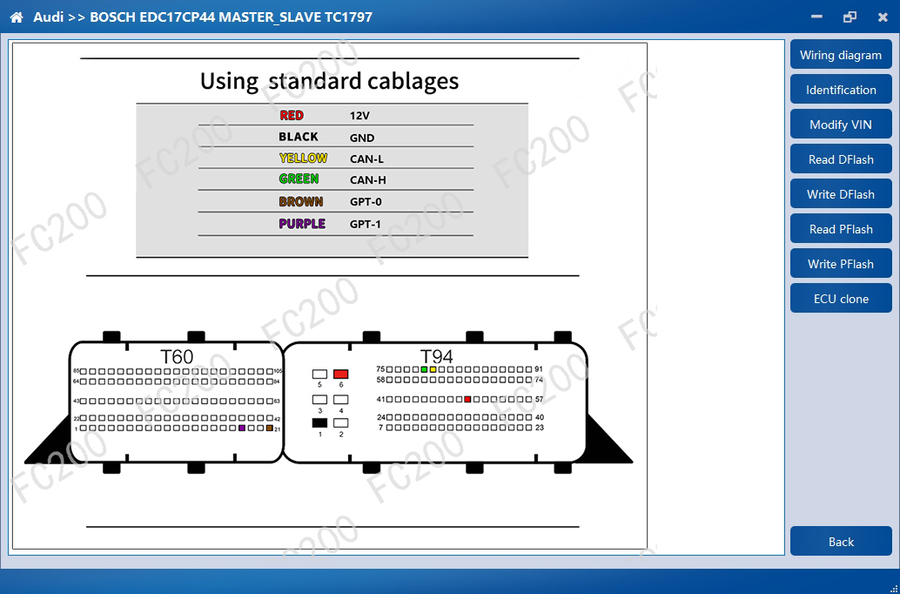

3.Intuitive wiring diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.
Model Support
Support 4200 kinds of ECUs, involving 80% of the models on the market.
Chinese cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra.
European cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
V1.2.3.0 Registered Version NEW
(2024.10.19)
New functions:
1. Added FC200 device binding function, after binding, you can get the latest news related to the device in time
2. Added DENSO SH72531 type ECU:
Nissan: 23740-5Sxxx_Gen2, 23740-3Nxxx_Gen1
Subaru: Subaru SH72531, 112800 SH72531
3. Added Honda KEIHIN type ECU:
Honda/Acura: KEIHIN 37820-xxx-xxx SH72543, KEIHIN 37820-Rxx-xxx SH7058, KEIHIN PGM FI SH7058
4. Added Volkswagen ECU mileage repair function: MED17.5.25, ME17.5.22, MED17.1.27
5. Added PFlash checksum function for GM Exx ECU
6. Other newly added ECUs:
BOSCH MG1US008 (BENCH mode)
BOSCH MD1CE100 (BENCH mode)
Hyundai/Kia KEFICO CPEGP3.20.1 (BENCH mode)
Hyundai/Kia KEFICO CPEGP2.10.1 (Boot mode)
Hyundai/Kia CONTINENTAL SIM2K-240R (Boot mode)
GM AcDelco E84 (BENCH/Boot mode)
GM BOSCH ME9.6.1 (BENCH mode)
7. Bug fixes
Fixed the problem that Suzuki BOSCH ME17.9.64 BENCH mode cannot connect
Fixed the problem that GM E39A failed to read EEPROM
Fixed the problem that TATA DCM7.24 failed to checksum
Fixed the problem that TATA MD1CS018 failed to checksum
Fixed the problem that CPEGD2.20.x failed to checksum
Fixed GM E39/E39A checksum issue
Fixed Ford SID208/SID209 password reading failure issue
Fixed DCM6.2AP, GPEC2, etc. data writing failure issue
V1.2.2.0 Registered Version
(2024.09.11)
1.FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires (Except Boot Mode). -- DELPHI ECU:
(1)BYD/BAIC/Chery/Dongfeng/FAW/Geely/GreatWall/JAC/JMC/Lifan/MG/SAIC/Trumpchi:
ChinaDelphi MT20U MC912DT128
ChinaDelphi MT22U MC9S12XET256
ChinaDelphi MT20U2 MC9S12KG256
ChinaDelphi MT22.1 MC9S12XEQ512
ChinaDelphi MT22.1.1 MC9S12XET256
ChinaDelphi MT34 TCxx
ChinaDelphi MT80 TC1766
DELPHI DCM6.2AP MPC5674
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI _DCM7.24_CHINA TC277T
DELPHI _DCM7.1AP_CHINA TC277T
DELPHI DCM3.7AP_CHINA SH72544
(2)Indian AshokLeyland:
DELPHI _DCM7.1AP_AshokLeyland_test TC277T
(3)Chevrolet/Luxgen:
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI DCM3.7AP SH72544
(4)Holden/Opel:
DELPHI DCM3.7AP SH72544
(5)Citroen/DS/Opel/Peugeot/Toyota
DELPHI DCM7.1A TC297TP
DELPHI DCM7.1B TC297TP
(6)Dodge/Freightliner:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797
(7)Hyundai/Kia:
DELPHI MT86 TC1766
DELPHI _DCM7.1AP_Hyundai TC277T
(8)Mahindra/TATA/JCB:
DELPHI _DCM7.24_test TC277T
DELPHI DCM2.7AP SPC5644
DELPHI _DCM7.1AP_TATA TC277T
DELPHI DCM2.5 XC2080M
(9)Benz:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797
DELPHI CRD3xx TC1793
DELPHI CRD3.E1 TC1793
DELPHI CRD3.F1 TC1793
DELPHI CRD3E.1 TC1793
DELPHI CRD3P.B0 TC1793
DELPHI CRD3P.C0 TC1793
DELPHI CRD3P.D1 TC1793
DELPHI CRD3P.G0 TC1793
DELPHI CRD3 TC1797
DELPHI CRD3.7 TC1797
DELPHI CRD3.10 TC1797
2. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires -- DENSO ECU:
(1) Isuzu/Hino:
DENSO 275700_7082 SH72546(Test)
(2) Mitsubishi:
DENSO MITSUBISHI_L200 SH72543(Test)
DENSO 4D56 SH7059(Test)
DENSO RA6 SH7059(Test)
DENSO 4N14 SH7059(Test)
(3)Fiat:
DENSO RA6 SH7059(Test)
(4)Nissan:
DENSO D3 SH7059(Test)
DENSO D4B SH7059(Test)
DENSO D40 SH7059(Test)
DENSO 3W SH7059(Test)
DENSO 23740_5Sxxx_Gen2 SH72530(Test)
DENSO G1 SH7059(Test)
DENSO 1G SH7059(Test)
DENSO H1 SH7059(Test)
DENSO Pxxx SH72543
(5)Opel/Vauxhall:
DENSO 275xxx-xxx SH7059(Test)
DENSO GM SH7055(Test)
(6)Subaru:
DENSO KH SH7059(Test)
DENSO KS SH7059(Test)
DENSO ZY SH7059(Test)
DENSO BF SH7059(Test)
DENSO GG SH7059(Test)
DENSO NN SH7059(Test)
DENSO KO SH7059(Test)
DENSO MB112700 SH72543(Test)
DENSO Subaru SH72543(Test)
(7)FAW:
DENSO TD112700-xxxx SH72530
(8)Hyundai/Kia:
DENSO 33910-05005 SH72530
(9)Mazda:
DENSO R2xx SH7058
DENSO RF7x SH7058
DENSO RF8x SH7058
DENSO Pxxx SH72543
DENSO S5xx SH72546
DENSO SHxx SH72543
(10)Scion:
DENSO Pxxx SH72543
(11)Suzuki:
DENSO 33920-67P0 SH72530
DENSO 33920-xxxx_1N83 MPC5746
(11)Toyota:
DENSO GEN3 R7F701216
DENSO GEN3 R7F701202
DENSO Pxxx SH72543
(12)Volvo
DENSO MB279700-9500 SH72543
DENSO MB279700-96xx SH72546
DENSO MB279700-9811 SH72546
DENSO MB279700-9801 SH72546
3. Others:
BOSCH MED9.6.1 MPC561/2
CONTINENTAL SIM2K_241_ECU TC1767
BOSCH Hongqi_H9_48V_Battery TC1724
KEFICO CPEBI2.20.2 TC1782
4. MSV80 Added a new button to read password
5. GM Exx/6T/L ECU/TCU of vehicle models optimized connection identification function
6. Fixed the issue of GM E80 connection failure
7. CONTINENTAL SID208, SID209 Added the function of reading password
V1.2.1.0 Registered Version
(2024.06.25)
content:
1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256
2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP
3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746
4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU
V1.2.0.0 Registered Version
(2024.05.11)
content:
1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
3. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot: ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33
4. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash
5. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B
V1.1.9.0 Registered Version
(2024.03.23)
content:
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
Mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1
2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0
3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017
4. A new button for "Vehicle Fault Code Support List" is added to the main interface.
BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.
V1.1.8.0 Registered Version
(2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2.M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3.GM E80 adds BOOT mode
4. BMW’s new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6.EDC17C84 adds the function of modifying VIN
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3.Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9.IVECO EDC17C69 supplementary wiring diagram
V1.1.7.0 Registered Version
(2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance
V1.1.6.0 Registered Version NEW
(2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.
V1.1.5.0 Registered Version
(2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance
V1.1.4.0 Registered Version
(2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089

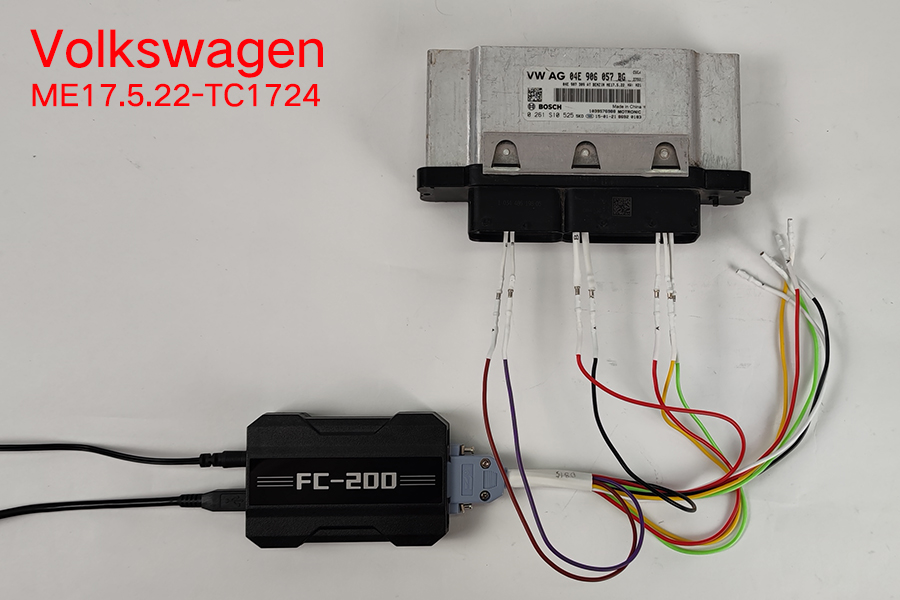

5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues
V1.1.3.0 Registered Version
(2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions
V1.1.2.0 Registered Version
(2023.04.03)
1.Add new models
（A）General engine computer: E37, E39A, E78, E80, E83
（B）ST10 engine computer: M7.4.4, ME7.3.2, ME7.4.4
2.Add new checksum
（A）Benz gearbox computer: VGS-FDCT, VGS2-FDCT, VGS-FCVT
（B）VW transmission computer: DL382, DL501 Gen2
（C）General engine computer: E38, E39, E39A, E67
3.Add new functions
（A）Lovol Engine Computer: "Time Repair" of EDC17CV53
V1.1.1.0 Registered Version
(2023.02.01)
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3
V1.1.0.0 Registered Version
(2022.12.13)
1.Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2.Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3.Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4.Added password reading function in the platform mode of GM engine E39
5.Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6.Added BOSCH platform engine: EDC17CV53
7.Fix some bugs and optimize software performance
V1.0.9.0 Registered Version
(2022.10.19)
1.Added GM ECU: E38, E39, E67 (ECU Note: please update the authorization for the first time, and then restart the software)
2.New gearbox computer: ZF_9HP
3.Added Bosch engine (platform mode) : MD1CS018, MG1CS032, MG1CS026, MG1CA920, MG1CA007, MG1CA811
4.Added engine with modified VIN function: EDC17C42, EDC17CP27, MED17.8.2, MEVD17.2.7
5.Added the American version of BMW 28A0 and 101F fault code shutdown function
6.Fix the abnormal display of software service time
7.Fix some bugs and optimize software performance
V1.0.8.0 Registered Version
(2022.09.07)
1.Added BMW 28A0, 101F fault code closing function
2.Added Bosch series engines: EDC17CP05 TC1797, EDC17C61, MED17.6.9, MG1CS019, MD1CS012, EDC17CV45, MG1CP002, ME17.U.6, MEV17.4.2 TC1766, MEV17.4.2 TC1767
3.New Bosch platform mode engines: ME17.8.8, MED17 and MED17.8.10
4.New Bosch boot mode engines: ME7.7.0, M7.9.8, MEG17.9.2, MEG17.9.21
5.Fix some bugs and optimize software performance
6.Add service renewal function
V1.0.7.0 Registered Version
(2022.06.28)
1.Added Bosch ST10 series engine boot modes: M7.9.7, ME7.9.71, ME7.9.7, ME7.4.5, ME7.9.9, MED7.6.1, MSE3
2.Added Hyundai and Kia KEFICO series engine boot modes: CPEGD2.20.1, CPEGD2.20.2, CPEGD2.20.3, CPEGD2.20.4
3.Added Delphi engine boot mode: CRD2.x MPC5566

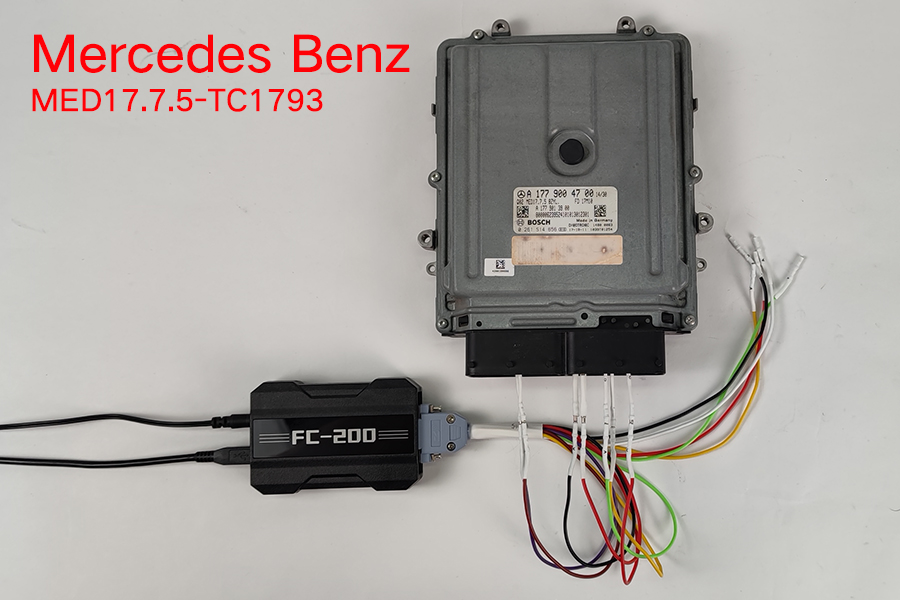

4.New Bosch boot mode engines: ME17.9.23, MED17.7.5, ME17.9.7, M17.8.7, MED17.8.2, EDC17CP65, ME17.8.5
5.Newly added engines to modify the VIN function: EDC17C63, EDC17CV44, MED17.1.1, MED17.8.2, MEDG17.0
6.Modify the VIN function and add the function of forcing a new VIN to be written
7.Fix some bugs and optimize software performance
V1.0.6.0 Registered Version
(2022.05.07)
1.Firmware upgrade (version 0008), repair the abnormal problem of reading and writing of MSD/MSV series, 271DE/KE engine (note: the new firmware 0008 must be used with the new version of software 1.0.6.0)
2.Added Bosch boot mode engines: EDC17C19, EDC17C73, EDC17U01, ME17.5.6, ME17.5.20, ME17.5.24, ME17.9.5, ME17.9.71, MEVD17.4.4
3.Newly added engines to modify the VIN function: MEG17.9.8, EDC17C76, MED17.8.10, MED17.8.32, EDC17C79, MEG17.9.12, ME17.9.23, ME17.8.8, MED17.9.8, ME17.9.64, EDC17CP52, EDC17C63, MED17 (domestic)
4.Added foreign engine: MG1CS042AA
5.Added BOSCH Kia Hyundai Honda reading password mode in BOOT mode
6.Added Bosch engine: MED17.8.10 TC1782, EDC17C10 TC1796
7.Optimize the menu and wiring diagram of domestic engine ME17.8.8
8.Fix some bugs and optimize software performance
V1.0.5.0 Registered Version
(2022.03.10)
1.Added Turkish language
2.Added Bosch boot mode engines: MED17.9.8, ME17.9.1, EDC17C45, ME17.9.61, ME17.5.26, MEDC17.9, ME17.8.32, MED17.8.31, EDC17C81
3.Added Bosch platform mode engines: MED17.9.8, MED17.8.2, ME17.9.56, ME17.9.1, ME17.7.8, EDC17C45
4.Fix some bugs and optimize software performance
V1.0.4.1 Registered Version
(2022.01.25)
1.Fix some bugs and optimize software performance
V1.0.4.0 Registered Version
(2022.01.24)
1.The main interface adds a search button by brand
2.New Bosch engine boot modes: MEDG17.0, EDC17CP05, ME17.9.51, ME17.0.3, ME17.9.21.1, ME17.9.74, MED17.9.3, EDC17CP18, ME17.9.52, MEV17.4, EDC17CP10, ME17 .9.21, MEV17.2.1, ME17.9.20, ME17.1.6, ME17.1.1, ME17.2.4, EDC17CP09, MED17.1.10, ME17.7, ME17.3.0, ME17.8.31, MED17.8.10
3.Added Bosch engine platform mode: MG1CS016
4.New Bosch engines (beta): MD1CP001, MD1CP002, MG1CS008, MG1CS011, MG1CS111, MD1CP006, MD1CP014, MD1CS001, MD1CS003, MG1CS018, MG1CS028
5.New engines with modified VIN function: EDC17C18, EDC17C19, EDC17C49, EDC17C74, EDC17CP54, EDC17CP60, ME17.1.6, ME17.2, ME17.2.4, ME17.5.24, ME17.5.26, ME17.7.20, MED17.1.62, MED17.3.5, MED17.9.3, MED17.9.63
6.Optimize the function of SH275xx series gearbox
7.Fix some bugs and optimize software performance
V1.0.3.1 Registered Version
(2021.12.30)
1.Fix the problem that some devices cannot enter platform mode
2.Optimize some wiring diagrams and menus
V1.0.3.0 Registered Version
(2021.12.23)
1.New online store button: query the validity period of the equipment service

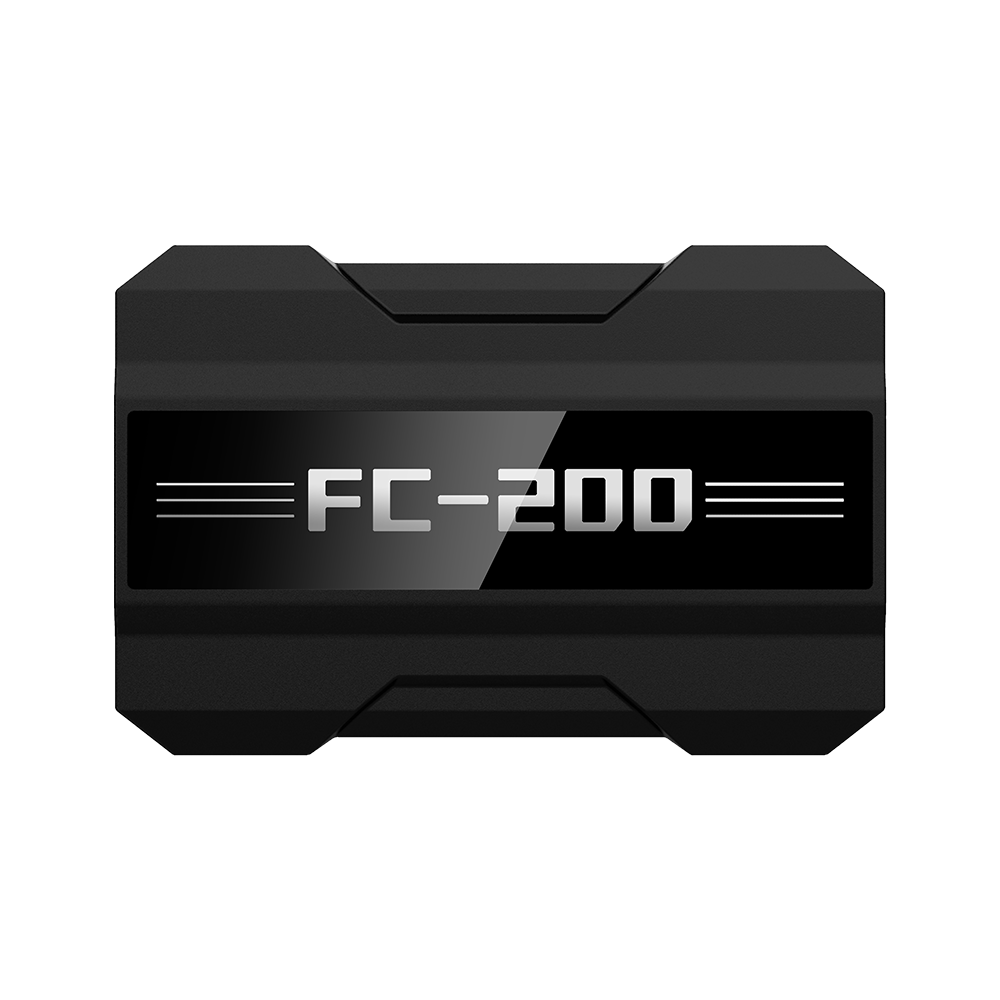

2.Added FC200 support list
3.Added Bosch engine platform modes: MEG17.0, MEG17.9.2, MEG17.9.8, MEG17.9.12, MEG17.9.13, MEG17.9.21
4.Added Bosch engine boot mode: MEG17.9.8, MEG17.9.12, MEG17.9.13
5.Added Bosch engine (test version): MD1CP004, MG1CS001, MG1CS002, MD1CS004, MD1CS005, MD1CS006
6.Optimize data processing-close the anti-theft system function (add a second closing method)
7.Optimize the engine menu and wiring diagram
8.Increase the zoom in and zoom out buttons in the wiring diagram interface
9.Optimize the clone function of Volkswagen DL382 gearbox
10.Fix some bugs and optimize software performance
Note: The equipment produced before 2021.09.10 will be automatically activated, and the service time will be valid until 2022.09.10. For equipment produced after this time, after the software is updated, a pop-up window will prompt to activate. Only after activation, some functions related to the server can be used normally. The validity period starts from the day of activation, and the validity period is one year.
V1.0.2.1
(2021.11.15)
1.Optimize the wiring diagram of BOOT mode of Bosch engine
2.Relaunch Bosch ME17.9.11 engine
3.Upgrade log for handling Spanish errors
4.Fix some bugs and optimize software performance
V1.0.2.0
(2021.11.02)
1.New ECU (Audi/Seat/Volkswagen/Skoda/Benz/Aston Martin/Aston/Maserati/Hyundai/Kia/Piaggio/Suzuki/Dacia/Renault/Smart/Ford/Opel/ Saab/Vauxhall/Citroen/Jaguar/Land Rover/Peugeot) Read and write VIN: MED17.1.21, MED17.1.27, MED17.1.10, EDC17C66, MED17.7.7, MED17.7.5, MED17.3.4, EDC17C08, EDC17C57, ME17 .9.61, ME17.9.20, MED17.0.1, EDC17C19, EDC17CP42, MED17.4.2, MED17.9.9, MEDC17.9
2.New Bosch engine platform mode: MG1CS042
3.Optimize the password reading method of the boot mode of the doctor series engine
4.Optimized the operation interface of PFLASH calibration function
5.Fix some bugs and optimize software performance
V1.0.1.0
(2021.09.11)
1. Added SH725XX gearbox computer clone: read and write MAPS, read and write EEPROM, backup data, and restore data.
(1) Support all ZF_8HP gearbox computer clones: Alfa Romeo/Alpina/Aston Martin/Audi/Bentley/BMW/Chrysler/Dodge/Great Wall/Iveco/Jaguar/Jeep/Lamborghini/Land Rover/Mann/Maserati /Porsche/Rolls-Royce/VinFast/Volkswagen
(2) Support VW/Audi/Skoda/Seat DQ380/DQ381 gearbox computer clone
(3) Support Benz/Nissan 9GTronic (VGS-NAG3) gearbox computer clone
(4) Support MINI/Renault/BMW 7-speed dual-clutch (Getarg 7DCT) gearbox computer clone
2. Added BMW gearbox clone model:
DKG(TC1766): Read and write DFLASH, EXT DFLASH, PFLASH
3. Added ECU (Chevrolet, Opel, Vauxhall) to read and write VIN: EDC17C59
4. New sub-function of BMW 6HP: Erase reset function
5. Added Bosch engine boot mode: MEVD17.2.7
6. Added Delphi engine boot mode: CRD2.x TC1797, CRD3.x TC1797
7. Optimize the engine computer read and write speed
8. Fix some bugs and optimize software performance
